900MHz RF

Tilt Scout

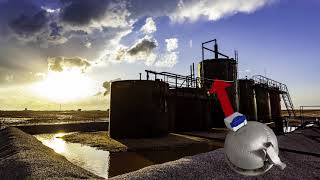

Wireless Thief Hatch Sensor is your Tank Hatch Watchdog

The Tilt Scout is a wireless solid-state inclinometer that measures an angle from horizontal with two modes: Hatch detection and Pump Jack detection. The Hatch detection mode enables “hatch watchdog” monitoring of the opening condition (closed, cracked open, opened) of a hatch for environmental and safety concerns, as well as protecting owners from theft. The Pump Jack detection mode detects and reports if a pump jack is operating or motionless. The Tilt Scout can also be applied to a variety of other applications where there’s a need to detect an angle from horizontal.

Technical Specifications

Operating Temp:

-40 to +176°F (-40°C to 80°C)

Humidity:

NEMA 4X Enclosure

Resolution:

<0.1 degree

Power:

Internal battery pack. Field replaceable.

Battery Life:

Greater than 5 years

Data Interface:

Wireless – available as Modbus registers at Gateway

Reporting:

Will report every 10 minutes or immediately after a state change

Radio Specifications:

  • Power: 40 mW
  • Receive Sensitivity: -109 dB
  • Encryption: AES 128 bit
  • Frequency: 902–928 MHz, FHSS, license-free ISM Band Compliant with FCC Part 15

Range:

Up to 1/2 mile

Intrinsically Safe:

Hazardous Location Certified – Class 1 Division 1 is Temp Code T3, Groups C&D. Conforms to UL Std. 913, Certified to Can/CSA Std C22.2 No. 157

Internal Diagnostics:

Battery voltage, signal strength, error conditions

Features

01
3 Axis Accelerometer constantly monitors angle and reports status. Will report on state change.
02
Hazardous Location Certified – Class 1 Division 1
03
Rugged design for outdoor environments
04
Magnetic mounting or with built-in installation holes
05
Pushbutton zeroing
06
Long battery life (greater than 5 years)
07
Up to ½ mile range
08
Built-in 900mHz radio and antenna
09
Operates as a standard wireless node in the SignalFire network

The Tilt Scout is a wireless solid state inclinometer that measures an angle from horizontal with two modes: Hatch detection and Pump Jack detection.

The Hatch detection mode enables “hatch watchdog” monitoring of the opening condition (closed, cracked open, opened) of a hatch for environmental and safety concerns, as well as protecting owners from theft. The Pump Jack detection mode detects and reports if a pump jack is operating or motionless. The Tilt Scout can also be applied to a variety of other applications where there’s a need to detect an angle from horizontal.

TitleCategoriesProductsFile TypeLanguagesLink
Tilt Scout 3D Model3D Models, DrawingTilt Scoutzip
Tilt Scout C1D1 CertificateCertificate900 MHz, Tilt Scoutpdf
Tilt Scout Clamp DrawingAccessories, DrawingTilt Scoutpdf
Tilt Scout DatasheetDatasheet900 MHz, Tilt Scoutpdf
Tilt Scout Dimensional DrawingDrawingTilt Scoutpdf
Tilt Scout ManualManual900 MHz, Tilt Scoutpdf
URCA CertificationsCertificate900 MHz, DIN Gateway, Gateway, Modbus, Pressure Scout, Sentinel, Tilt Scoutpdf
Wireless Remote Monitoring of Hatches on Tanks in Oil FieldsCase Study900 MHz, Tilt Scoutpdf
Wireless Remote Monitoring of Pump Jack Operation in Oil FieldsCase Study900 MHz, Tilt Scoutpdf
