Standard View 3D View

900MHz RF

PATRIoT Gateway

The PATRIoT Gateway is a versatile hub that connects wireless and wired devices into SCADA, cloud, and monitoring systems with ease. As a protocol aggregator, it supports Modbus TCP, EtherNet/IP, and MQTT/SparkPlug, it seamlessly integrates data from SignalFire’s 900 MHz wireless nodes, Modbus devices, and field I/O modules for a flexible, cost-effective solution. With ultra-low power consumption, large-scale tag support, and secure cloud-ready connectivity, the PATRIoT delivers reliable performance in even the most remote applications. Whether you need to shorten cable runs, enable local automation, or scale to thousands of devices, the PATRIoT Gateway provides a powerful platform to modernize and simplify industrial monitoring.

Request a Quote Where to Buy

Technical Specifications

Physical Specifications:

Dimensions: 5.6” (142mm) Tall x 1.6” (41mm) Wide x 5.2” (132mm) Deep
Weight: 2 Lbs (0.9Kg)
Housing Material: Powder Coated Steel
Mechanical installation: DIN Rail Mount

Electrical Specifications:

Input Power: 6 to 42 Vdc
Power Consumption @ 12Vdc No Ethernet
- 66mA Average, 75mA Max
- With Ethernet: 85mA Average, 95mA Max
Power Consumption @ 24Vdc No Ethernet
- 35mA Average, 43mA Max
- With Ethernet: 45mA Average, 53mA Max
Wire Termination: Screw Terminals. 18AWG-22AWG
Clock: Clock and RSD Control Registers Maintained For 30 Days Without Power

Environmental:

Ambient Operating Temperature: -40 to +185°F (-40°C to 85°C)
Humidity: 0% – 95% Non-Condensing

Wired Communication Interfaces:

2x RS485/RS232: 2 Serial Ports. Individually software Configurable For RS485 or RS232. Server Mode (Client Mode Pending)
1x RJ45: 10/100 Ethernet Port with TCP/IP, Modbus TCP , Ethernet/IP (pending)
1x USB-C USB-C: High Speed Interface For Local Configuration With SignalFire Toolkit

Wired Communication Protocols:

Modbus RTU
- 30,000 Tags
- 2000 Remappable Tags
- Mode: Server
- Mode: Client (Pending)
Modbus TCP
- 30,000 Tags
- 2000 Remappable Tags
- 8 Concurrent Clients
- Mode: Server
- Mode: Client (Pending)
Ethernet IP (Pending)
- CIP I/O Connections: 2
- CIP Coil / Discrete Assemblies: 2×240
- CIP Register Assemblies: 12×248
MQTT/SparkPlug
- 1000 Tags
- 200,000 Store/Forward Tag Buffer
- Configurable MQTT Brokers (3)
- TLS Encryption 1.2

Wireless Communication Interface:

SignalFire 900MHz Star/Mesh Network
- Radio Power: 500mW
- Antenna: External, Omnidirectional
- Frequency Band: 902MHz – 928MHz
- ISM License Free, Compliant With FCC Part 15 And Industry Canada
- Up To 3 Mile Range (Depends on SignalFire Node Type & Condition)
Antenna RP-SMA Antenna connector

Wireless Communication Protocol:

SignalFire
- Mode: Start/Mesh Self Organizing and Self Healing
- Nodes: 240 (Depends On Update Rate Interval Of Each Node)
- Remote Configuration Of Nodes Using Over-The-Air Technology
Security
- 128 Bit AES Encryption, Pre-shared Key
- Frequency Hopping
- Replay Prevention

Local Automation:

Remote Shutdown Logic: Configurable With Up To 128 rules

Networking:

Modbus TCP Connections: 8 Modbus Concurrent Clients

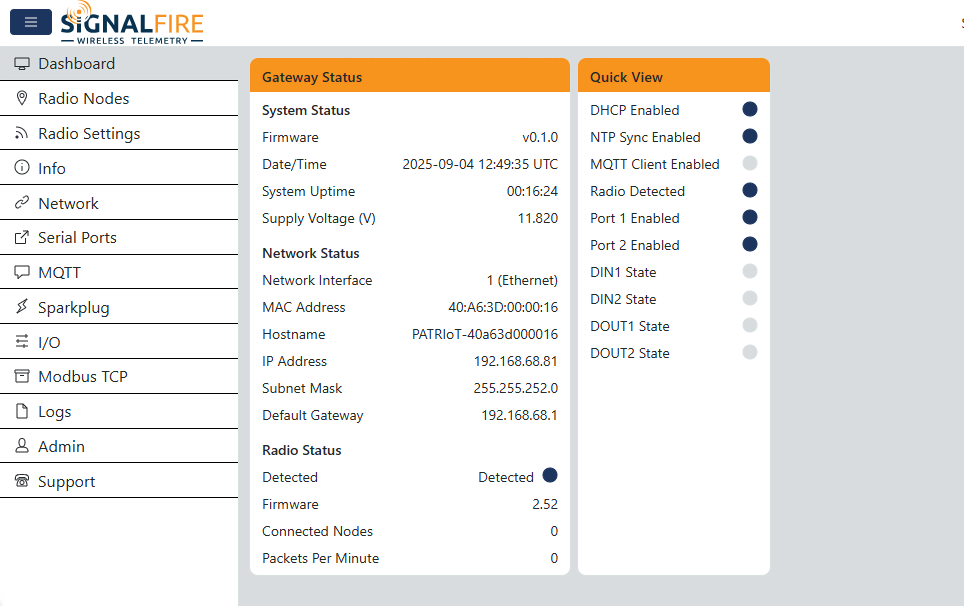

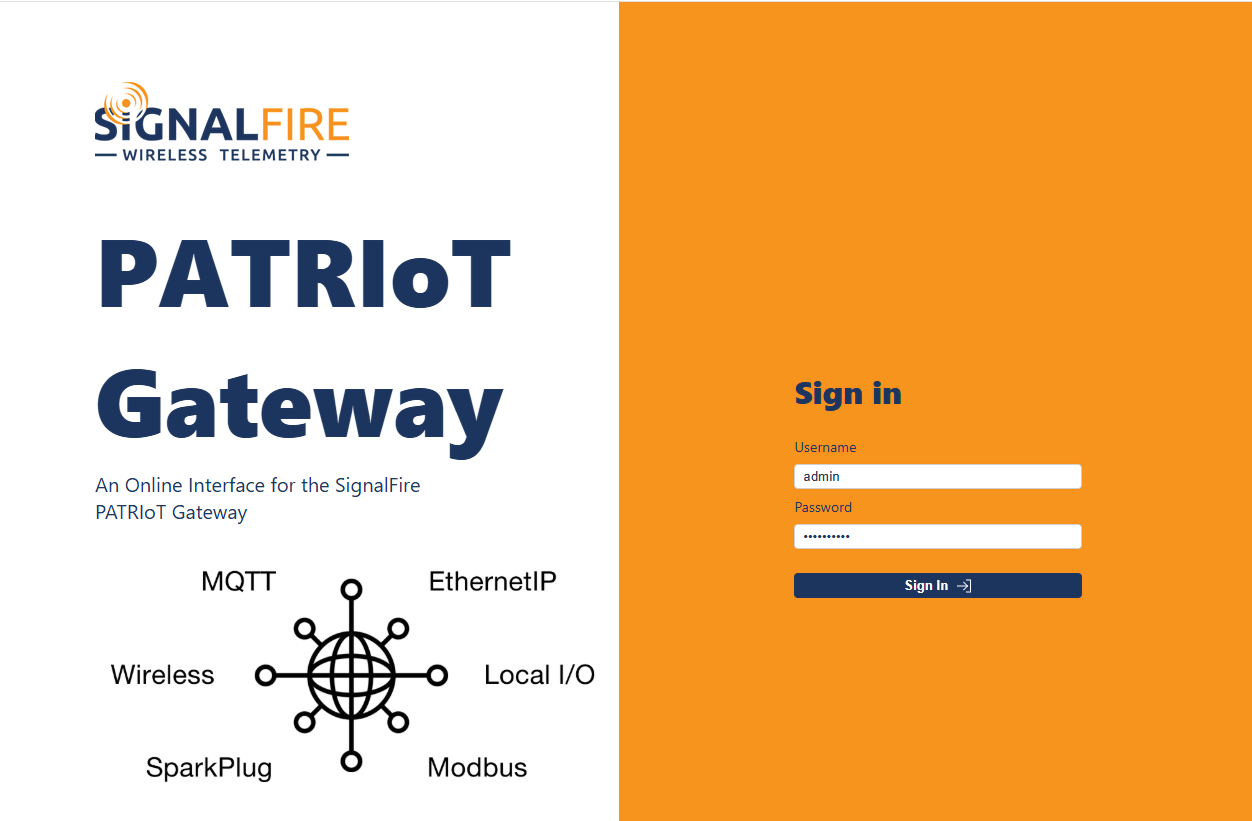

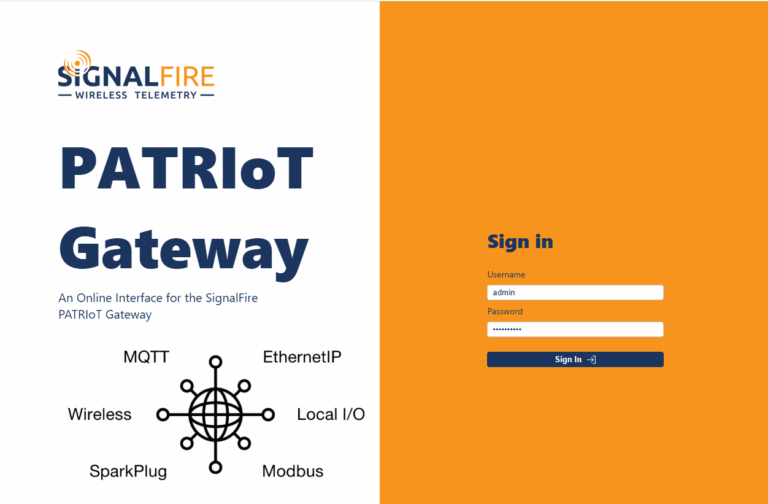

Web Admin Interface: Configurable Login Credentials and Enable/Disable Control Setting
MQTT/SparkPlug: Configurable Broker (3) with TLS 1.2 Security
IP: Static or DHCP
Network Time: NTP Sync

Wired Inputs/Outputs:

Integrated I/O
- 2 DI – Dry Contact or Open Collector or Voltage Pulse
- 2 DO – 24DC/1A
Expandable I/O
- SignalFire Analog/Relay Output Module: Up to 2 Modules. Each Module Has 8 Analog Outputs and 2 Relay Outputs
- SignalFire Digital Output Relay Module: Up to 2 Modules. Each Module Has 12 Digital Outputs

Approvals:

Hazardous Locations (pending):
- Class 1 Division 2
- Certified, Groups A,B, C, D. Temperature Code T5
- Certified to CSA C22.2 No. 213:2017, Conforms to UL 121201:2017
ISM Band: Compliant with FCC Part 15, IC (Industry Canada)

Features

Integrates wireless + wired signals into SCADA, cloud, or remote systems

Publishes to MQTT/SparkPlug with no licensing required

Wired inputs/outputs: 2DI, 2DO

Supports SignalFire Cloud for turnkey monitoring and control

Ultra-low power consumption (<50mA) for solar-friendly installations

Large-scale deployment capabilities with up to 30,000 Modbus tags

Remote shutdown logic with 128 configurable rules for automation

Expansion modules for analog and relay outputs

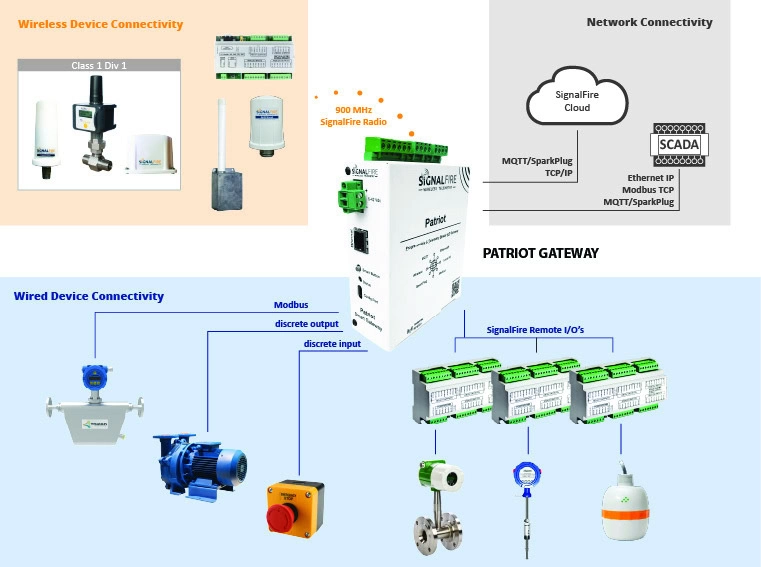

The PATRIoT Gateway (Programmable & Telemetry Ready IoT Gateway) is a powerful integration hub designed to connect both wireless and wired devices into SCADA and monitoring systems with ease.

Supporting SignalFire’s 900 MHz wireless network, Modbus devices, and wired inputs, the PATRIoT delivers data through a wide range of communication standards including Modbus TCP, EtherNet/IP, and MQTT/SparkPlug. This versatility allows operators to unify diverse signals into one scalable, secure, and cloud-ready platform.

A key advantage of the PATRIoT is its ability to serve as a remote hub for wired signals in addition to wireless nodes. By pairing with SignalFire’s Multi I/O Module (MIOM), users can collect analog and discrete inputs and outputs in the field and connect them to SCADA via the gateway—reducing cable runs and lowering installation costs. With the ability to map up to 30,000 Modbus tags, publish MQTT/SparkPlug data without licenses, and support SignalFire Cloud’s monitoring and control features, the PATRIoT is built for both efficiency and flexibility.

Engineered for demanding environments, the PATRIoT consumes less than 50mA, making it ideal for solar-powered applications. Additional features such as secure TLS 1.2 communication, local shutdown logic with 128 configurable rules, and expansion modules for analog and relay outputs ensure reliable performance and future scalability. Whether deployed for local automation or cloud-based supervision, the PATRIoT Gateway provides a cost-effective, high-performance solution for modern industrial monitoring.
