Cellular

PRESSURE RANGER

LTE-M/NB-IoT Cellular Pressure Transmitter

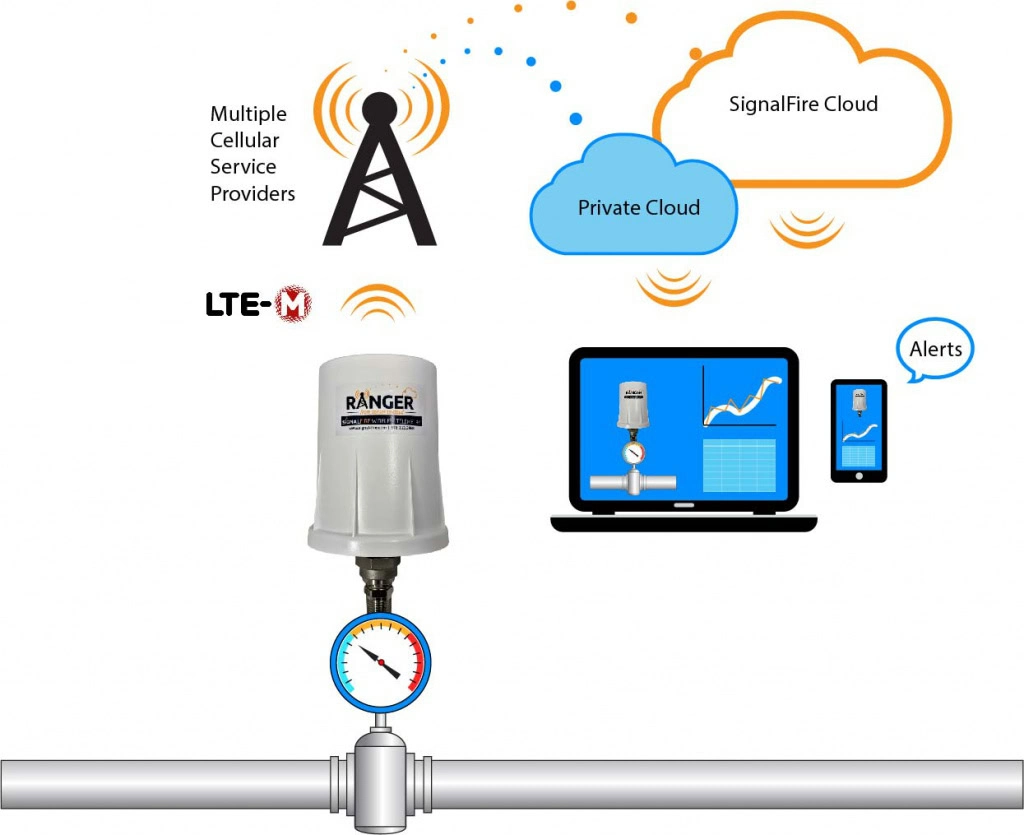

The SignalFire Pressure RANGER is an IoT (Internet of Things) cellular pressure transmitter using the latest LTE CAT M1 technology for sensors and is fully integrated with SignalFire’s cloud monitoring and alarming services. The Pressure RANGER includes an integrated pressure sensor and features a built-in GPS receiver that reports the location of devices to the cloud, providing a map of all connected assets. The unit is powered by a 4 D Cell Lithium battery pack that is field-replaceable.

Technical Specifications

Operating Temp:

-40 to +176°F (-40°C to 80°C)

Humidity:

0% – 100% condensing

Power:

Four (4) D Cell Lithium battery pack

Battery Life:

5+ years with a 5-min report interval

Data Interface:

LTE CAT M1 and NB-IoT Cellular MQTT w/ SparkPlug B

Data Transmission:

  • Report interval 1 min to 12 hrs (min, max, avg, actual)
  • Configurable report on exception threshold
  • Configurable sampling as fast as every 5 seconds

Cellular Radio Power:

23dBm

Antenna:

  • Integrated Dual LTE & GPS
  • Optional External Antenna with SMA Connector

Enclosure:

Industrial polycarbonate UV Rated; IP67

Safety Rating:

Class 1 Division 2 Certified, Groups A, B,C, D. Temperature Code T5. Certified to CSA C22.2 No. 213:2017, Conforms to UL 121201:2017, CE Approved

Local Micro-USB Configuration Port

Weight: 2 lbs (910 g)

Estimated Monthly Data Usage:

Check-in interval dependent

  • 30 sec = 54 MB
  • 1 min = 27 MB
  • 5 min = 5.4 MB
  • 15 min = 1.08 MB
  • 60 min = 0.27 MB

Features

01
LTE CAT M1/NB-IoT connectivity to cloud services
02
Integrated pressure sensor
03
SignalFire cloud monitoring/alarming service
04
Integrated sensor allows rapid data collection and report on exemption
05
Reports max, min, average and instantaneous pressure
06
1/2″ NPT process connection standard
07
Available in standard pressure ranges
08
FirstNet Capable

FirstNet Capable

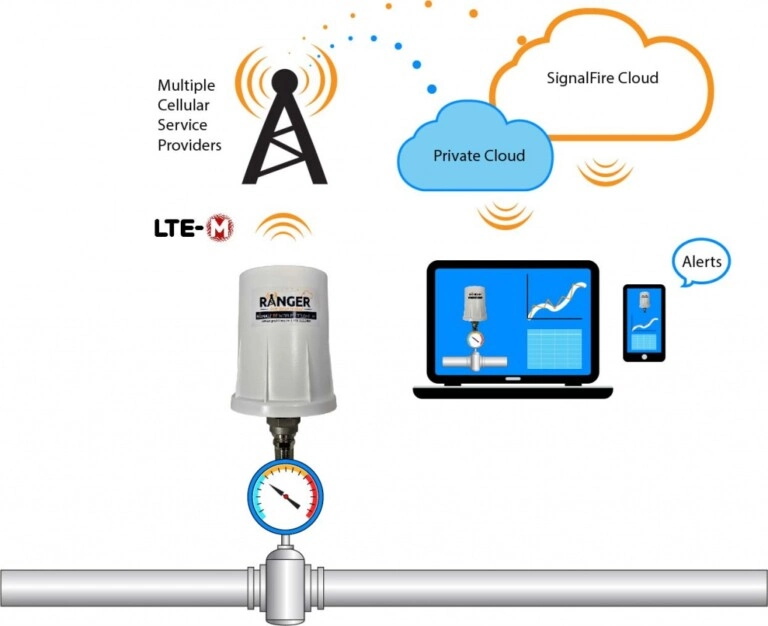

The SignalFire Pressure RANGER is an IoT (Internet of Things) cellular pressure transmitter using the latest LTE CAT M1 technology for sensors and is fully integrated with SignalFire’s cloud monitoring and alarming services.

The Pressure RANGER includes an integrated pressure sensor and features a built-in GPS receiver that reports the location of devices to the cloud, providing a map of all connected assets. The unit is powered by a 4 D Cell Lithium battery pack that is field-replaceable.

The Pressure RANGER comes complete with the mobile device-ready SignalFire cloud interface to monitor, trend, and get alarms either by text or email message. In addition, the cloud platform provides for remote configuration and troubleshooting of the Pressure RANGER.

TitleCategoriesProductsFile TypeLanguagesLinkhf:doc_categorieshf:doc_tagshf:tax:language
Cloud API ManualManualCloud, DIN RANGER, LTE-M1 Cellular, Pressure RANGER, RANGER, RANGER Wall Mount, RANGER900pdfmanualcloud din-ranger lte-m1-cellular pressure-ranger ranger ranger-wall-mount ranger900
Pressure RANGER DatasheetDatasheetLTE-M1 Cellular, Pressure RANGERpdfdatasheetlte-m1-cellular pressure-ranger
Pressure RANGER Dimensional DrawingDrawingLTE-M1 Cellular, Pressure RANGERpdfdrawinglte-m1-cellular pressure-ranger
Pressure RANGER ManualManualLTE-M1 Cellular, Pressure RANGERpdfmanuallte-m1-cellular pressure-ranger
RANGER Connectivity OptionsDatasheetCloud, DIN RANGER, Pressure RANGER, RANGER, RANGER Wall Mount, RANGER900pdfdatasheetcloud din-ranger pressure-ranger ranger ranger-wall-mount ranger900
RANGER Tag Guide v0.1.20-PressureRANGERMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
RANGER Tag Guide v0.1.22-PressureRANGERMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
RANGER Tag Guide v0.1.23-PressureRangerMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
RANGER Tag Guide v0.1.25-PressureRangerMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
RANGER Tag Guide v0.1.31-PressureRangerMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
Ranger Tag Guide v0.1.32-PressureRangerMQTT Tag Guide – ArchiveLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-archivelte-m1-cellular pressure-ranger
Ranger Tag Guide v0.1.33-PressureRangerMQTT Tag Guide – CurrentLTE-M1 Cellular, Pressure RANGERxlsxmqtt-tag-guide-currentlte-m1-cellular pressure-ranger

PERFORMANCE AT 77°F/25°C

Accuracy: <±0.25% BFSL

≤ ± 0.5% BFSL (>10,000 PSI)

Stability (1 year): ±0.25% FS, typical

Over Range Protection: 2X Rated Pressure, Minimum

Burst Pressure: 5X or 40,000 PSI (whichever is less)

Pressure Cycles: >100 Million

Process Connection: 1/2” NPTM 316L Stainless Steel Standard, F250C Autoclave for pressure >10,000 psi, Other process connections/material available

Standard Pressure Ranges: 0-100 psi, 0-500 psi, 0-1000 psi, 0-3000 psi, 0-5000 psi, 0-10,000 psi, 0-15,000 psi*, 20,000 psi*

Low Pressure Ranges: 0-2 psi, 0-20 psi

*additional lead-time may apply

THERMAL LIMITS

Operating Range: -40 to +176°F (-40 to +80°C)

Compensated Range: 5°F to 150°F (-15°C to +65°C)

TC Zero: <±1% of FS

TC Span: <±1% of FS
